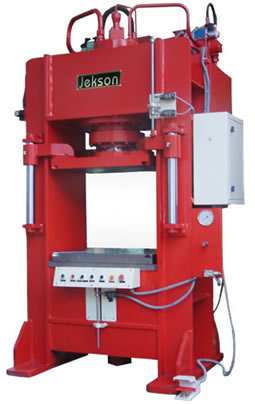

Hyd.Press



Standard Feature Accessories:

• Main drive standard make motor

• Electrical control panel with three speed inch,single cycle,Auto mode of operation.

• Two front sheet supports

• Manual back gauge with micro-adjusment swing stoppers. pair of lifting chains.

• fine stroke adjustment rod with limit switches.

• One suitable 5 way die and blade.

• (segmented ofr full length,EN-9 not covered under warranty)

• moveble console with emergency stop.

• Tonnage indicating - adjustment device.

• Manual centralized lubrication system with hand pump.

• bending chart.



Feature:

• Mono Block Welded Steel Frame ultra tested-2062

• steel plates rigid to provide Accurate bending.

• All pivots have hardened of ground pin bushes of five

• piece guide slide lubricated by central hand pump

• Repetitive accuracy is within +0.03mm Ram travel parallelism with out using sensitive & complex servo Hydraulics.

• Most reliable Hydraulic components & sealing for international reputed design for 350 bar against operating pressire of 160 bar maximum.

• Three cycles operation inch,Single cycle&Auto for grater operator convenience.

• Three speed operation reduces ideal travel time which improves productivity.

• Bending force easily adjustable From front for forgue tool of bending material.
